Guardian

#Guardian

Modern and ultra powerful, the Guardian is a multi-channel capable leak tester that's ideal for a wide range of test methods including pressure or vacuum decay, mass flow or differential pressure. Standard, high speed 64-bit processor and 24-bit digital pressure transducer provide stable, repeatable results.

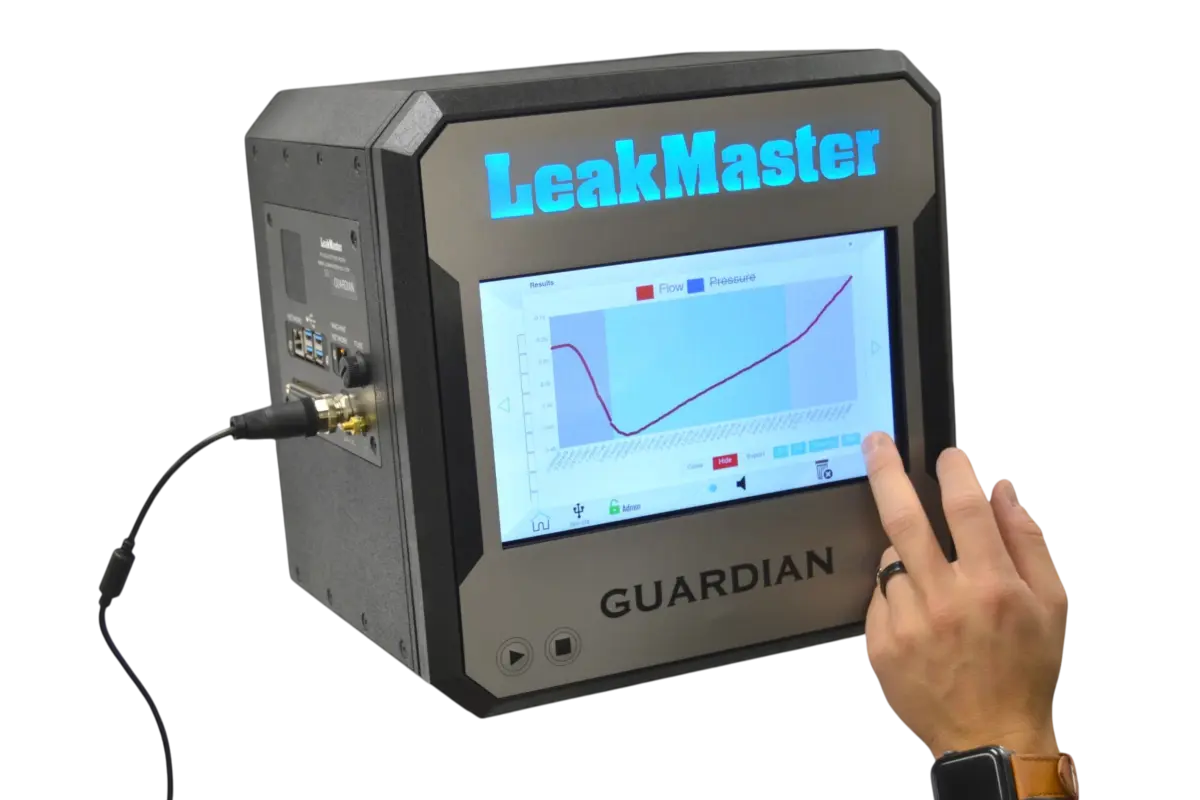

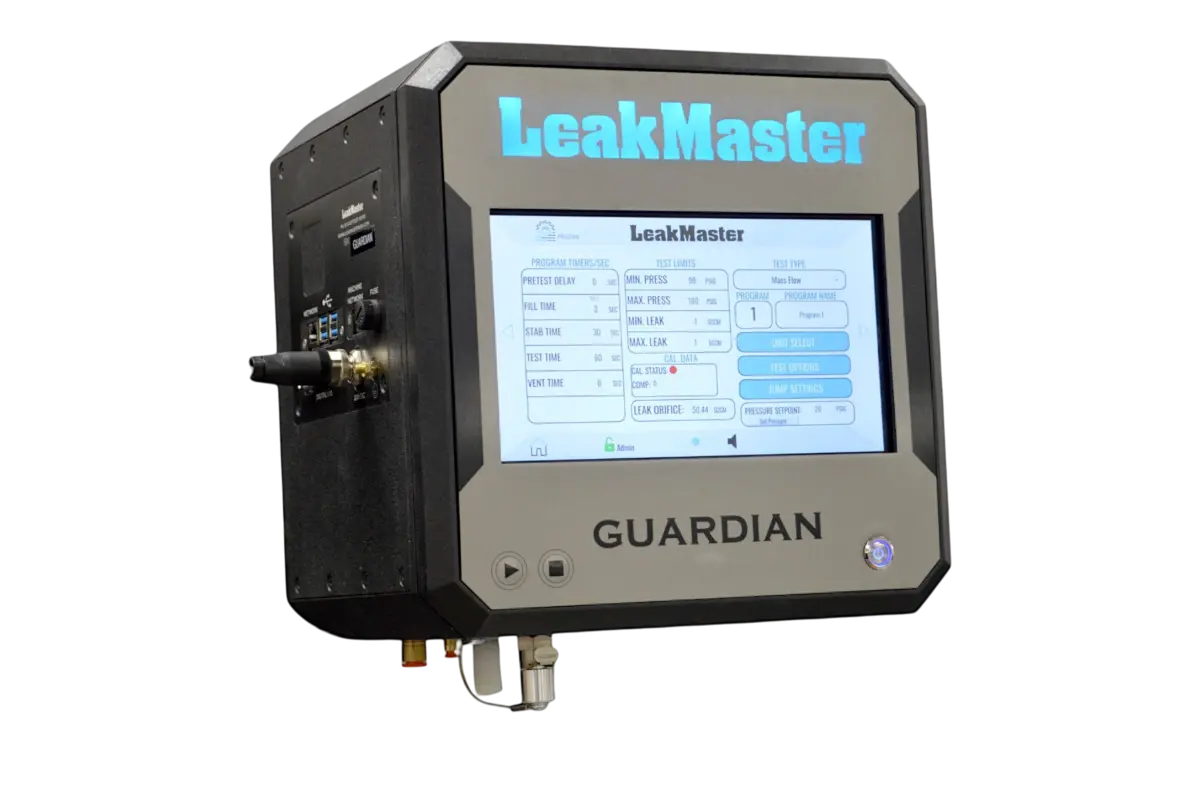

The large 10" color touchscreen provides excellent long range visual indication. Other unique features such as user identification, data collection and electronic pressure regulation make the Guardian the perfect choice for long term production usage. As an option, Ethernet IP or Profinet communications are available, providing seamless integration with a variety of devices. For peace of mind, trust Guardian.

Quantity:

Add to Quote

Test Type:
- Differential Pressure Decay Leak Testing
- Mass Flow Leak Testing
- Metered Volume (IP Leak Testing)
- Occlusion Testing
- Pressure Decay Leak Testing
- Vacuum Decay Leak Testing
- Volumetric Fill Leak Testing (IP67 Leak Testing)
Programs per Channel:
999
Number of Channels:
1 Standard /Optional 2nd Channel
Mass Flow Sensor:
0-1 LPM or 0-6 LPM
Inputs:
(16) 24VDC PNP
Outputs:
(16) 24VDC PNP

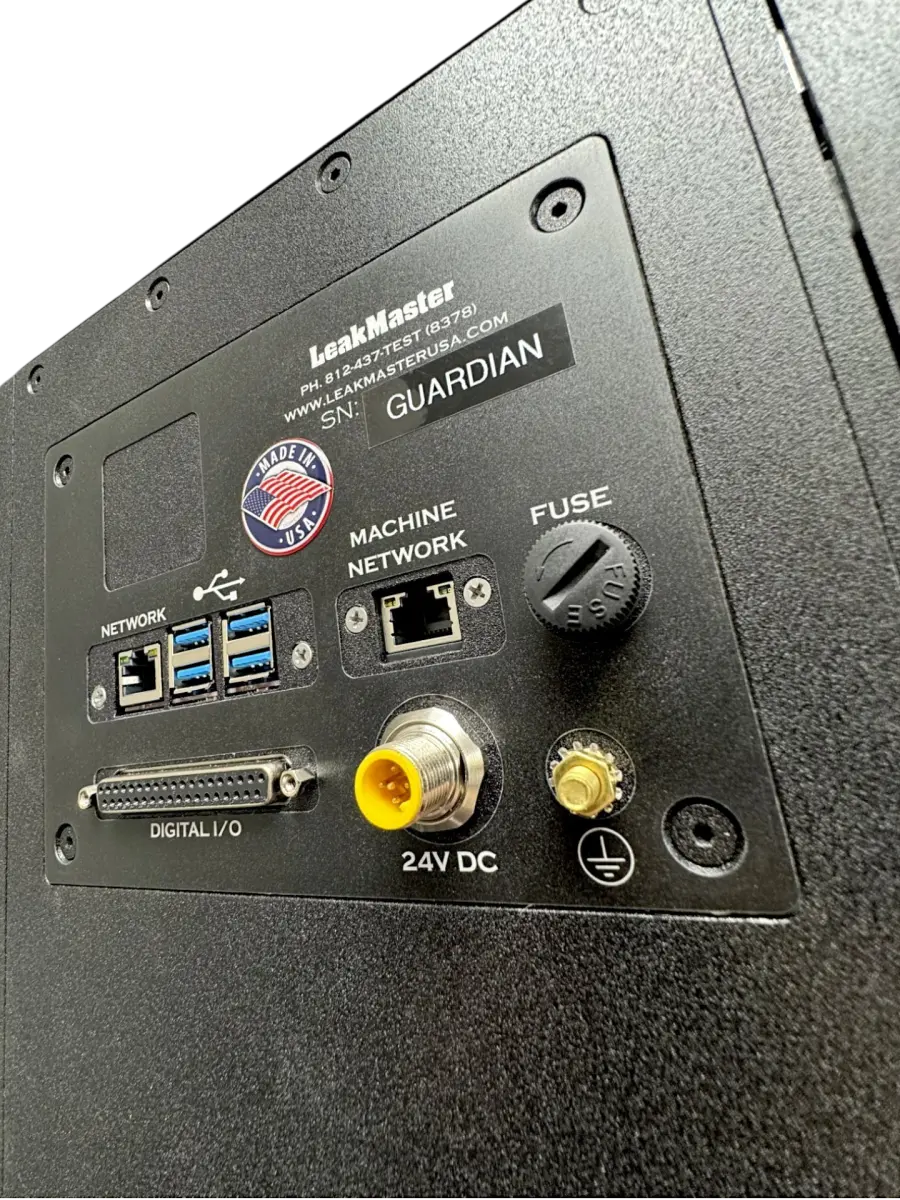

Communications:
Digital IO, EtherNet/IP
Regulator Options:
0-2 PSIG, 0-15 PSIG, 0-30 PSIG, 0-60 PSIG, 0-150 PSIG, 0-400 PSIG
Transducer Options:
0-29 PSIA, 0-15 PSIG, 0-60 PSIG, 0-150 PSIG, 0-380 PSIG
Pressure Regulator:
Electronic
Pressure Range:
Vac-380 PSIG

Pressure Decay Leak Testing
Vacuum Decay Leak Testing (Optional)
Mass Flow Leak Testing (Optional)
Differential Pressure Decay Leak Testing (Optional)
Occlusion Testing
Metered Volume (IP67 Leak Testing) (Optional)
Volumetric Fill Leak Testing (IP67 Leak Testing) (Optional)

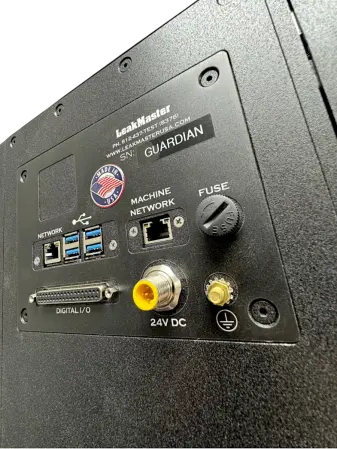

Cutting-edge communications featuring optional Ethernet IP, Profinet and our exclusive "Slave Mode for ultimate tester control.
Easy to set up through its color display or through a PLC interface. Makes test setup quick and efficient, building confidence and eliminating confusion.

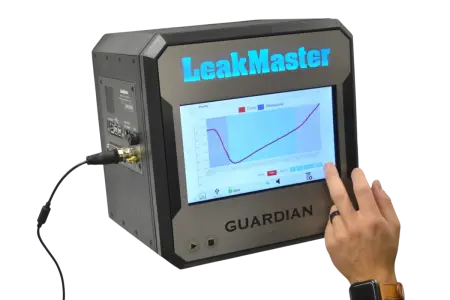

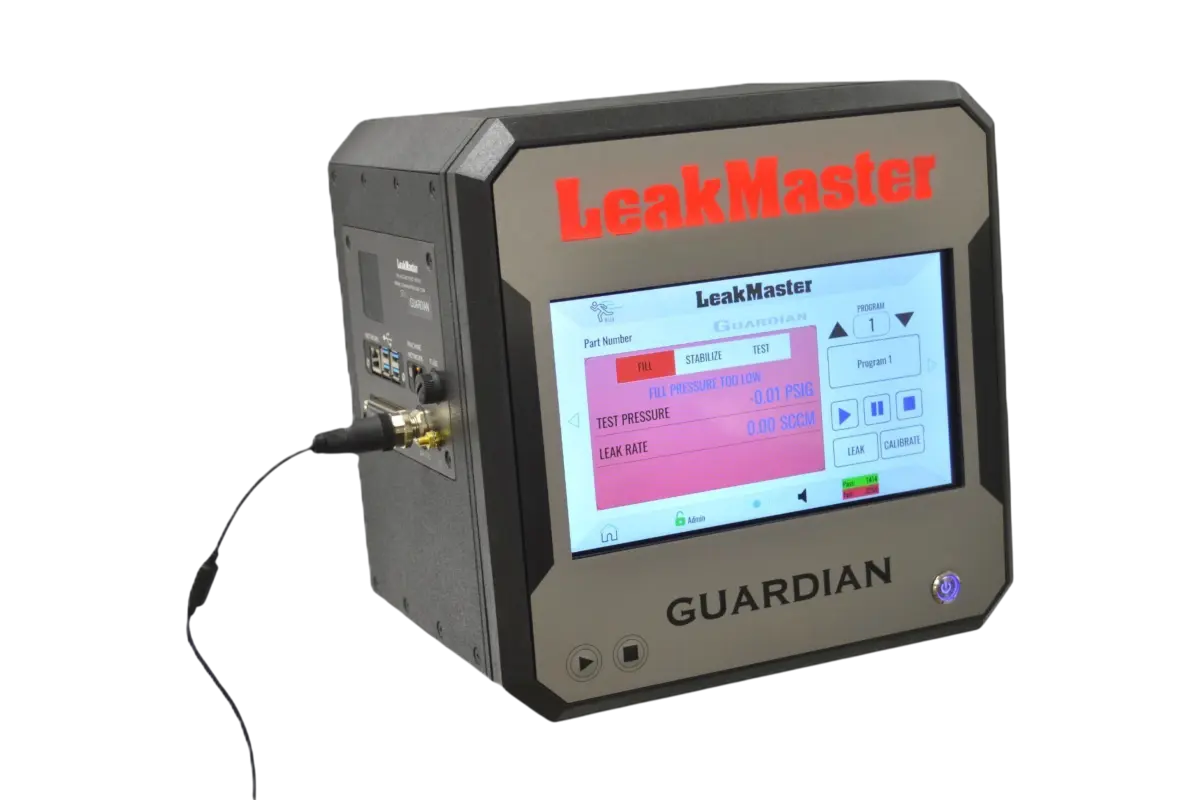

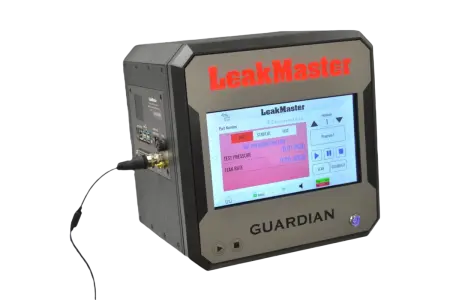

Large 10' operator interface with LED indication during test cycle. Provides excellent long-range viewing and phase of the test.
Multiple test options. Guardian instruments can be configured for multiple channels and a variety of test methods including pressure or vacuum decay, mass-flow, differential pressure, metered-volume and occlusion/blockage.
Optional programmable electronic pressure regulator with wide pressure range. Test pressure can change program to program or cycle to cycle via Slave Mode.
Repeatability and ease of use. Guardian Series leak testers utilize our highest resolution sensors and circuit boards, providing unparalleled results over a wide test range. Nothing tests like a Guardian.
