LeakMaster is a world class full service automation house specializing in Leak and Flow Test Solutions. We provide quality solutions to companies in need of quality standards to produce world class products.

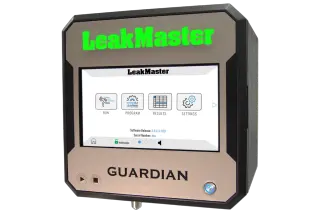

LeakMaster offers an easy to use all digital Leak Test System with a user friendly large graphical interface and one-touch auto-calibration technology.

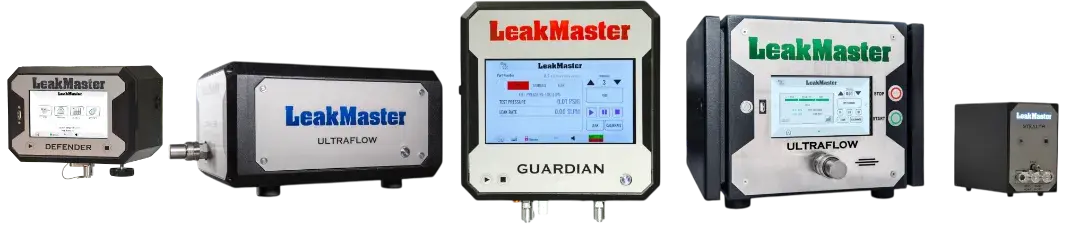

LeakMaster can provide your company with a stand-alone benchtop leak tester to a complete turnkey assembly and testing production machine.
With the use of Ethernet or your specified protocol, the LeakMaster test system is specifically designed for
plug-n-play capabilities.
LeakMaster offers an easy to use all digital Leak Test System with a user friendly large graphical interface and one-touch auto-calibration technology.
LeakMaster can provide your company with a stand-alone benchtop leak tester to a complete turnkey assembly and testing production machine.
With the use of Ethernet or your specified protocol, the LeakMaster test system is specifically designed for
plug-n-play capabilities.
Automotive Flow
Automotive
Medical
Medical/Electronics
Plastic Tanks
Heat Exchangers
Automotive
Automotive
Sports Equipment
Automotive
Automotive
Filters
Fittings
Sealed Containers
Seals
Channels Single
Programs per Channel 8
Calibrated Leak Orifice N.I.S.T. Traceable
Inputs (11) 24VDC PNP
Outputs (3) 24VDC PNP
Communication RS485/232
Data Collection USB Mass to 5000 tests User PLC data collection
Touch Screen 6" TFT Color
Dimensions 14" H x 10" W x 7" D
Pressure Monitor Transducer 0-60 PSIA
Decay Pressure Resolution .00001 PSIG
Operation Mode Pressure/Vacuum Decay
Mass Flow Sensor +/- 30 SCCM
Flow Resolution .03 SCCM
Operation Mode Pressure/Vacuum Decay
Channels: Up to 4
Dual Pressure
Inputs: (11) 24VDC NPN, 120 VAC
Outputs: (3) 24 VDC NPN, Relay, 120 VAC
Communication: Ethernet, Profibus, Devicenet
Data Collection LeakMaster Pro Server
Customer Specified Data Collection
Touch Screen: 7.5" , 10"
Fast Fill
Electronic Pressure Regulation
Pressure Monitior transducers: 0-100, 0-200 PSIA
Operation Mode: Burst/Cracking Pressure
Programs per Channel 8
Calibrated Leak Orifice N.I.S.T. Traceable
Inputs (11) 24VDC PNP
Outputs (3) 24VDC PNP
Communication RS485/232
Data Collection USB Mass to 5000 tests User PLC data collection
Touch Screen 6" TFT Color
Dimensions 14" H x 10" W x 7" D
Pressure Monitor Transducer 0-60 PSIA
Decay Pressure Resolution .00001 PSIG
Operation Mode Pressure/Vacuum Decay
Mass Flow Sensor +/- 30 SCCM
Flow Resolution .03 SCCM
Operation Mode Pressure/Vacuum Decay
Channels: Up to 4
Dual Pressure
Inputs: (11) 24VDC NPN, 120 VAC
Outputs: (3) 24 VDC NPN, Relay, 120 VAC
Communication: Ethernet, Profibus, Devicenet
Data Collection LeakMaster Pro Server
Customer Specified Data Collection
Touch Screen: 7.5" , 10"
Fast Fill
Electronic Pressure Regulation
Pressure Monitior transducers: 0-100, 0-200 PSIA
Operation Mode: Burst/Cracking Pressure
Standard LeakMaster v.200 Specifications
Differential Pressure Decay
Mass Flow
OPTIONS
